Ponovno se vraćamo AMD-u i trenutno najjačoj MSI-evoj ploči namijenjenoj Ryzen procesorima podužeg imena – X370 XPower Gaming Titanium. Jasno je da kupce treba impersionirati, no ovako dugačko ime možda ipak nije potrebno. Isti ti kupci će biti impresionirani opremom i izgledom ove ploče jer je svakako trenutno najatraktivnija X370 na tržištu, a kvaliteta izrade te bogata oprema idu joj na čast. MSI trenutno u ponudi ima sedam X370 ploča a ova sjedi na vrhu ponude i najbolje je što imaju za ponuditi za Ryzen procesore.

msi_x370_titanium_3 msi_x370_titanium_4

Ploča dolazi u velikoj ekskluzivnoj kutiji, sivih (titanium) tonova s otklopnom prednjom stranicom. Na kutiji se jasno nalaze sve bitne informacije o proizvodu, a kroz otvor je moguće vidjeti i ploču. Bundle je standardno bogat, premda Asus i Gigabyte uz svoje top modele daju više. Osim medija s aplikacijama i upravljačkim programima, tu je i debela knjižica s uputstvima, različite naljepnice, zahvala za kupovinu, produžni RGB LED kabel, SLI mostić, srebrni SATA kabeli, itd.

msi_x370_titanium_5 msi_x370_titanium_6

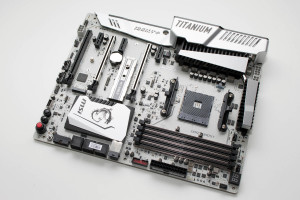

Ploča odlično izgleda! Kombinacija sivog PCB-a s crnim i sivim konektorima, sivim poklopcem za stražnji I/O panel, M.2 poklopac i sivih elemenata na crnim VRM hladnjacima je vrlo uspješna i ploča mami poglede. Layout ploče je solidan, pa se na 30.5 x 24.4 centimetara ništa s ničim ne gura. Nije nam drago vidjeti M.2 socket odmah ispod prvog PCIe x16 utora u kojeg ide grafička kartica, zbog velikog zagrijavanja oba uređaja. MSI je to ublažio postavljanjem M.2 zaštite koja služi i kao hladnjak, no mi ipak više volimo rješenje u kojem M.2 SSD dobiva maksimalno zraka iz usisnih ventilatora.

msi_x370_titanium_11

Ne pokazujemo često ploče s donje strane jer se to ionako nikad ne vidi, no ovu ploču smo morali. Boja je jednostavno odlična!

Specifikacije MSI X370 XPOWER GAMING TITANIUM
Podržani
procesori 		Supports AMD RYZEN series processors and 7th Gen A-series/ Athlon processors for Socket AM4
Čipset AMD X370
Memorija • 4 x DDR4 memory slots, support up to 64GB
– Supports DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ Mhz
• Dual channel memory architecture
* 7th Gen A-series/ Athlon processors support a maximum of 2400 MHz.
Utori
za proširenja		 • 2 x PCIe 3.0 x16 slots (PCIE_2, PCIE_4)
– RYZEN series processors support x16/x0, x8/x8 mode
– 7th Gen A-series/ Athlon™ processors support x8/x0 mode
• 1 x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode)
• 3 x PCIe 2.0 x1 slots
Multi-VGA
podrška		 • RYZEN series processor
– Supports 2-Way NVIDIA SLI Technology
– Supports 3-Way AMD CrossFire Technology
• 7th Gen A-series/ Athlon processor
– Supports 2-Way AMD CrossFire Technology
LAN
 • 1 x Intel I211AT Gigabit LAN controller
Audio • Realtek ALC1220 Codec
– 7.1-Channel High Definition Audio
– Supports S/PDIF output
Storage
• AMD X370 Chipset
• 6 x SATA 6Gb/s ports
• 2 x M.2 ports (Key M)
– M2_1 slot supports PCIe 3.0 x4 (RYZEN series processor) or PCIe 3.0 x2 (7th Gen A-series/ Athlon processors) and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices
– M2_2 slot supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices
• 1 x U.2 port
– Supports PCIe 3.0 x4 (RYZEN series processor) or PCIe 3.0 x2 (7th Gen A-series/ Athlon processors) NVMe storage
* Maximum support 2x M.2 PCIe SSDs + 6x SATA HDDs or 2x M.2 SATA SSDs + 4x SATA HDDs.
• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB
• ASMedia ASM2142 Chipset
– 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
– 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel• AMD X370 Chipset
– 1 USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port through the internal USB connector
– 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors
– 7 x USB 2.0 (High-speed USB) ports (3 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

• AMD CPU
– 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel
BIOS UEFI BIOS
Format • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
• ATX Form Factor
Interni I/O portovi – 1 x 24-pin ATX 12V power connector
– 1 x 8-pin ATX 12V power connector
– 1 x 4-pin ATX 12V power connector
– 1 x 6-pin ATX 12V power connector
– 6 x SATA 6Gb/s connectors
– 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
– 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
– 1 x USB 3.1 Gen2 connector (supports additional 1 USB 3.1 Gen2 Type C port)
– 1 x 4-pin CPU fan connector
– 1 x 4-pin water-pump-fan connector
– 4 x 4-pin system fan connectors
– 1 x RGB LED connector
– 1 x Digit Debug Code LED
– 1 x 2-pin Slow mode connector
– 1 x TPM module connector
– 1 x Front panel audio connector
– 2 x System panel connectors
– 1 x Chassis Intrusion connector
Jedinstvene značajke
Mystic Light osvjetljenje
M.2 Shield
XBoost storage
Command Center
Live Update
RAMDisk
Military Class 5
VR Accelerator chip
One click VR
Steel Armor
